The fomaco M3
Injection excellence

Tailored to fit every specific need possible, we give you the ultimate injector-tenderizer. Increase your production volume and optimize your production flow with the excellent M3.

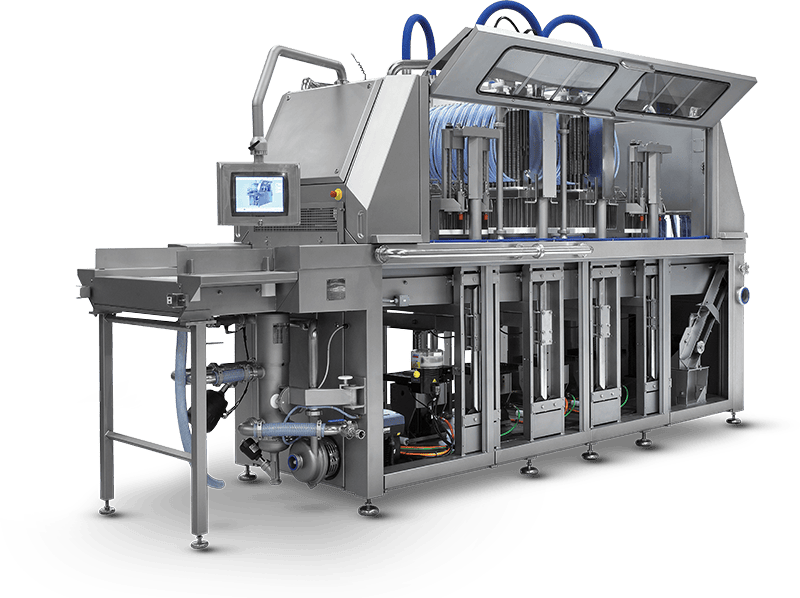

The Fomaco M3

The M3 comes in four different sizes, each with a different number of head configurations available, allowing for total customization. Due to the modular design, identical programs and because the exact same construction principles have been applied to all components and controls, installation and use have never been easier.

M3



Relevant configurations for the fomaco m3

Configure your machine to match your product with the following configuration options:



Relevant Equipment for the fomaco m3



Choose the relevant equipment to optimize your production flow:

MAXIMUM MOVEMENT CONTROL

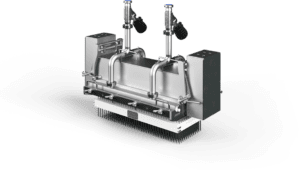

With the M3 you are the one in control. Independent spindle motors for each needle head enable the M3 to adapt to the height of your product. It is even possible to define the movement range of the needle head from top to bottom, giving you an unprecedented control of the salt and marinade distribution. The linear acceleration during injection ensures a uniform salt distribution from top to bottom.

RELIABLE - EVEN IN
AGGRESSIVE ENVIRONMENTS

The M3 is a series of thoroughly tested, high quality production machines designed to operate in highly demanding and aggressive production environments. The ‘box-in-box’ construction seals and protects critical electrical components and controls from water ingress, humidity and atmospheric salt.

OPTIMIZED FLOW
FROM PUMP TO PRODUCT

At Fomaco we constantly improve and enhance the performance of our machines. Our use of state-of-the-art pump systems has eliminated dead zones and low flow areas, ensuring a constant pressure and a precise flow rate. The result is a uniform brine distribution - regardless of product type, size and number of needles.

INTELLIGENT SOFTWARE FOR IMPROVED
PRODUCTION MANAGEMENT

To provide a smooth and uncomplicated production process the M3 comes with advanced, built-in software. Remote Device Manager (RDM) allows for troubleshooting and updating of the machine directly from the Fomaco facility in Denmark. This both saves valuable production time and minimizes potential downtime. In addition to providing an unlimited number of preprogrammed production profiles, many routines are fully automated:

  • Automatic lubrication
  • Automatic monitoring of brine temperature
  • Automatic control of min. pump pressure
  • Automatic troubleshooting
  • Automatic cleaning program


Everything is controlled from the both user friendly and highly intuitive touch screen mounted on a swing arm for convenient operation at all angles.

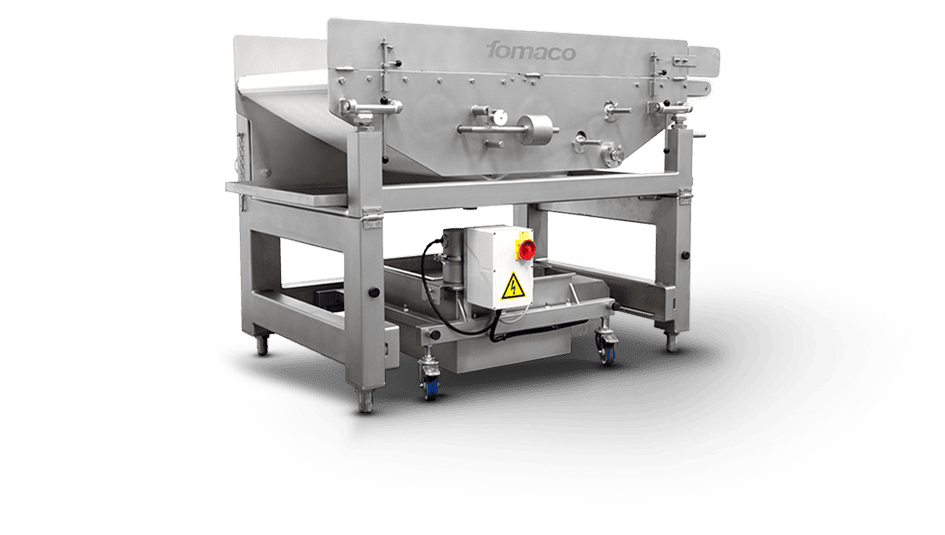

Last but not least data such as temperature and brine levels are transmitted from filters and brine mixers/storage tanks, while the Inline Weight Controller (IWC) constantly monitors the injection quantity and corrects the settings in case of irregularities.

STATE-OF-THE-ART,
SELF-CLEANING PROTEIN FILTER

The M3 comes with a fully self-cleaning protein filter - the FM 80 -
uniquely designed to remove all impurities in the brine, preventing the
fine needle holes from blocking. This not only ensures an even brine
distribution, it also eliminates operator involvement in filter cleaning
and maintenance.

CLEANING
HAS NEVER BEEN EASIER

An automatic, computerized washing program, a self-draining
mechanism, and a number of other unique features make cleaning
the M3 series both thorough and quick:

  • Everything is manufactured in stainless steel and food approved plastic materials
  • All electrical components are fully protected so that special care is not needed when cleaning the machine
  • The pump and the entire brine system can easily be taken apart
  • All joints are mounted with hygienic fittings and completely isolated from the electrical installations
  • All pipe connections are exterior to lower cabinet
  • All pipes are assembled with hygienic dairy fittings
  • All pipes are easily disassembled for inspection and cleaning

ADDITIONAL FEATURES

  • Possible Trafo installation
  • Possible SCADA integration
  • Large windows in the upper doors allow for inspection during operation

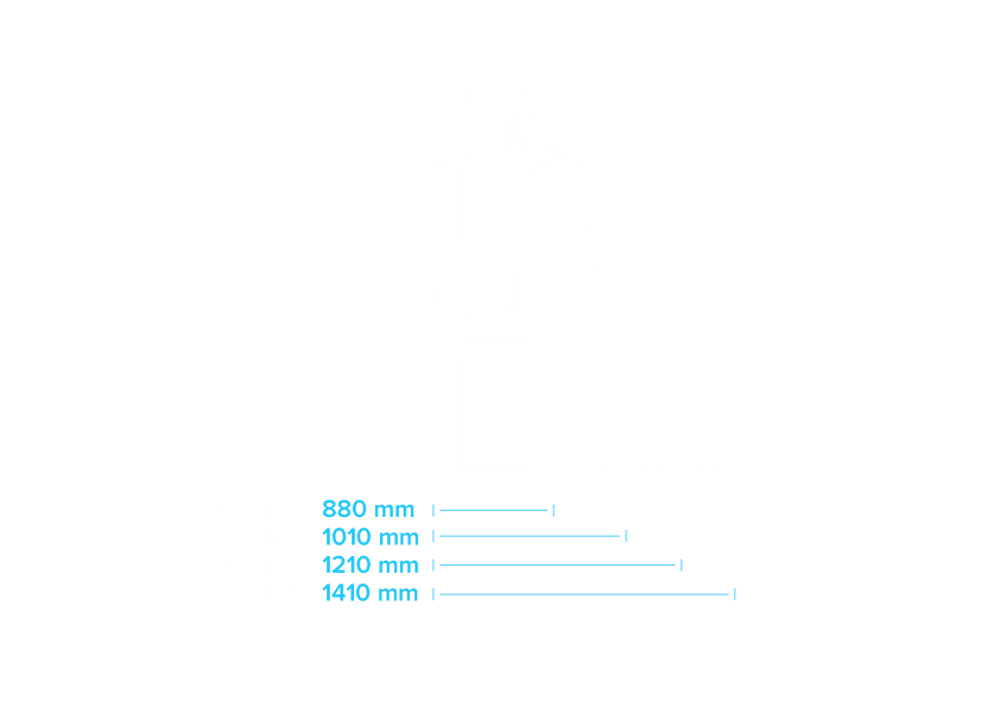

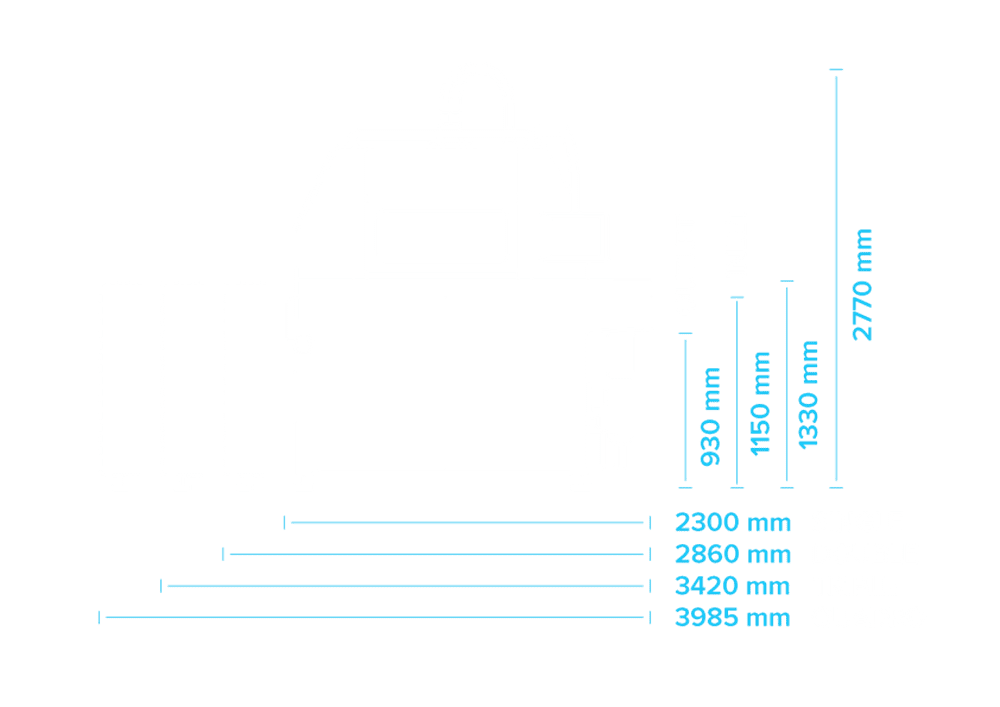

TECHNICAL SPECIFICATION / M3

 FGM 48FGM 64FGM 88FMG 112
Needle head 1-90 Strokes per min. 1-90 Strokes per min. 1-90 Strokes per min. 1-90 Strokes per min.
Transport system Conveyor belt - stainless
steel or plastic (PEHD,
Intralox)
Conveyor belt - stainless
steel or plastic (PEHD,
Intralox)
Conveyor belt - stainless
steel or plastic (PEHD,
Intralox)
 Conveyor belt - stainless
steel or plastic (PEHD,
Intralox)
Transport system (width) 420 mm 550 mm 750 mm 950 mm



  SINGLE HEAD DOUBLE HEAD TRIPLE HEAD QUADRO HEAD
FGM 48 980 kg 1370 kg
FGM 64 1070 kg 1470 kg 1870 kg
FGM 88 1240 kg 1675 kg 2350 kg 2785 kg
FGM 112 1650 kg 2100 kg 2850 kg 3300 kg
