BIP Portion Control

Utilising the Fomaco BIP needle retracting system the injector can handle low profile bone-in products at unprecedented high throughputs.

Bip Portion Control

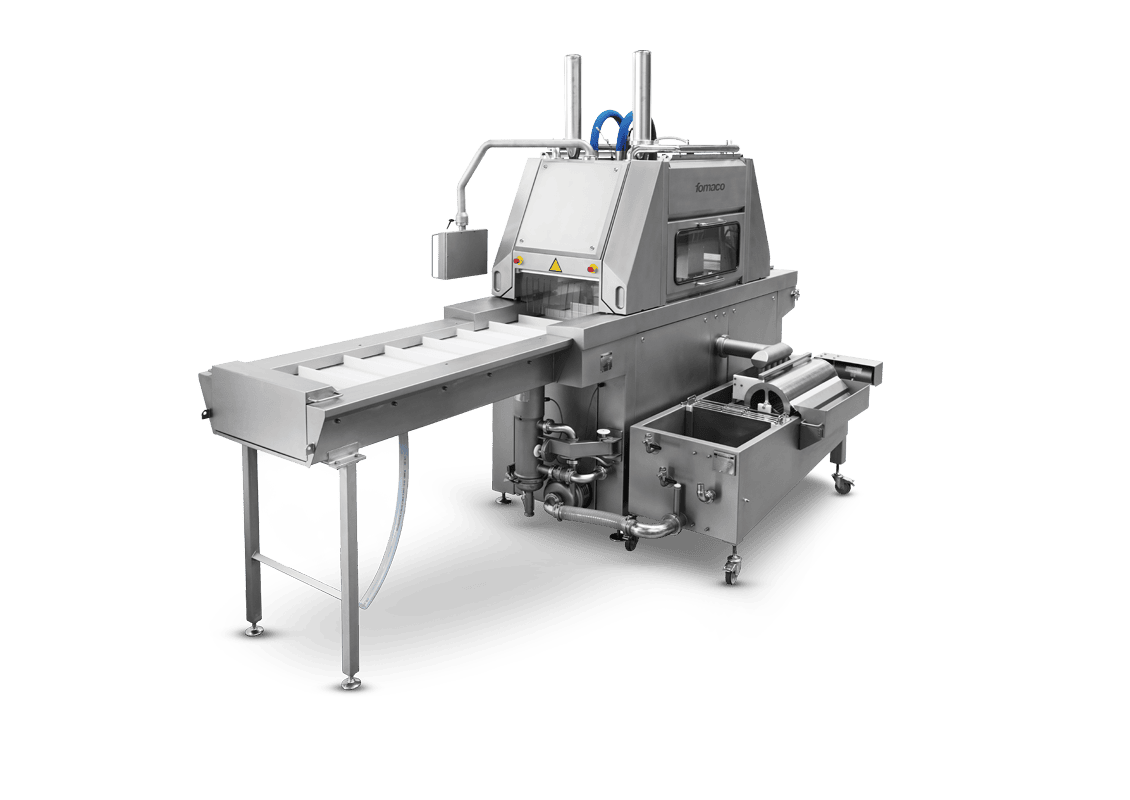

The BIP Portion Control has been designed with a purpose built flighted conveyor belt specifically for handling a 2 x 9 piece chicken cut. The 1.6 metre extended infeed helps operators or ancillary equipment load all pieces into the designated sections.

Bip portion control

RELIABLE - EVEN IN
AGGRESSIVE ENVIRONMENTS

The M3 is a series of thoroughly tested, high quality production machines designed to operate in highly demanding and aggressive production environments. The ‘box-in-box’ construction seals and protects critical electrical components and controls from water ingress, humidity and atmospheric salt.

OPTIMIZED FLOW
FROM PUMP TO PRODUCT

At Fomaco we constantly improve and enhance the performance of our machines. Our use of state-of-the-art pump systems has eliminated dead zones and low flow areas, ensuring a constant pressure and a precise
flow rate. The result is a uniform brine distribution - regardless of product type, size and number of needles.

INTELLIGENT SOFTWARE FOR IMPROVED
PRODUCTION MANAGEMENT

Remote Device Manager (RDM) allows for troubleshooting and updating of the machine directly from the Fomaco facility in Denmark. This both saves valuable production time and minimizes potential downtime. In addition to providing an unlimited number of preprogrammed production profiles, many routines are fully automated:

  • Automatic lubrication
  • Automatic monitoring of brine temperature
  • Automatic control of min. pump pressure
  • Automatic troubleshooting
  • Automatic cleaning program

Everything is controlled from the both user friendly and highly intuitive touch screen mounted on a swing arm for convenient operation at all angles.

DESIGNED FOR
QUICK AND EASY CLEANING

With the BIP quick release system you can dismantle the full needle cassette in a matter of seconds. Inspection, cleaning and disinfection has never been easier! This also allows for an instant exchange with a clean needle cassette.

In addition, the needle head features:

  • Designed as a pump-to-product system for improved hygiene
  • A wash table for all loose parts during cleaning
  • Improved cleaning functionality for needles and lower needle head section

ADDITIONAL FEATURES

  • Uniform and dense needle pattern
  • Possible Trafo installation
  • Possible SCADA integration
  • Large windows in the upper doors allow for inspection during operation

TECHNICAL
SPECIFICATIONS

Advancement:    255 mm
Stripping height H1:      70 mm

Available needle types:   Single

Injection area W1 x L1       Number of needles
FGM 64 480 x 245 mm        FGM 64       512 pcs

Compatibility
FGM 64

TECHNICAL SPECIFICATION / BIP PORTION CONTROL

    FGM 64 BIP PORTION CONTROL
Needle head    Up to 45 strokes per minute
Transport system    Conveyor belt – plastic (PEHD, Intralox)
- Flight height 51 mm
- Distance between flights 255 mm
Transport system (width)    480 mm
Weight    1275 kg
